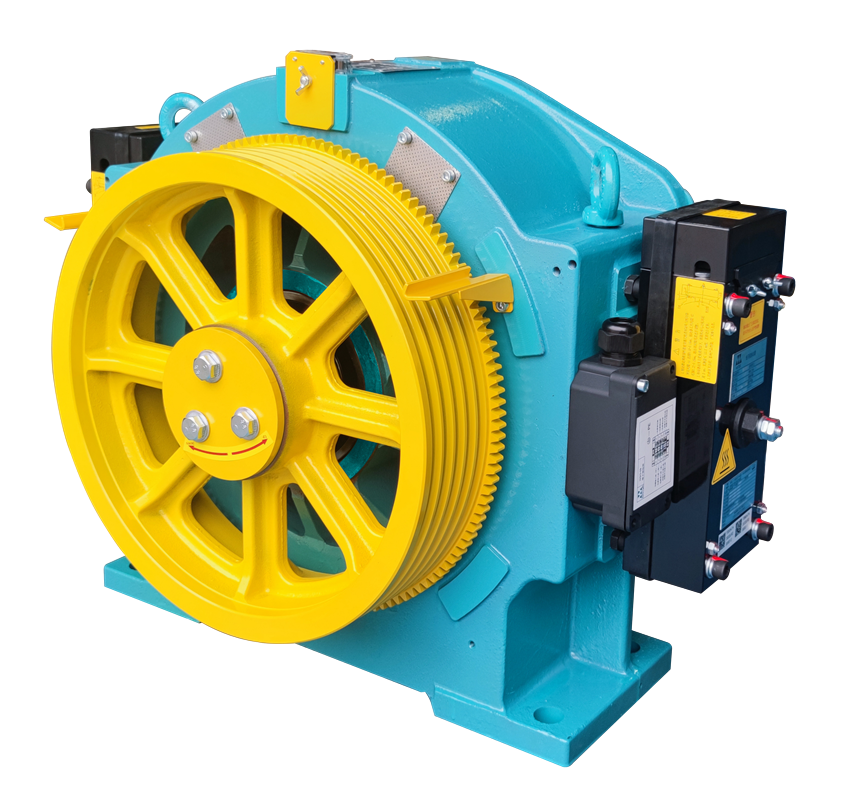

WSG-08
Synchroniczne wciągarki bezreduktorowe
WSG-21
Bezprzekładniowe synchroniczne maszyny trakcyjne
WSG-25
Synchroniczne wciągarki bezreduktorowe
WSG-29
Synchroniczne wciągarki bezreduktorowe
WGG-29
Bezprzekładniowe synchroniczne maszyny trakcyjne
WITTEC
The Wittur calculation tool
.png)
Wittur bed plates
Rozwiązania szyte na miarę dla Twojego projektu
Wittur bed plates
Nasze rozwiązania dostosowane do potrzeb klienta przewyższają je pod względem łatwości montażu, elastyczności, bezpieczeństwa, konstrukcji i transportu
Discover
Enquiry-order form Lift Machines
Enquiry-order form Lift Machines
Discover
WSG-LF.S
Compact Gearless Machine for MR and MRL Applications
WSG-LF.S
Wittur WSG-LF the new generation of gearless lift machines for lifts without machine room
Discover
WBP-SF-MF
Adjustable bedplates for Wittur WSG-SF and WSG-MF Gearless Lift Machines
WBP-SF-MF
DiscoverProduct Comparison Tool
| WGG-29 | WSG-08 | WSG-21 | WSG-25 | WSG-29 | WSG-52 | WSG-LF | WSG-MF | WSG-RF | WSG-SF | WSG-TB | WSG-TR | WSG-TS | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suspension 2:1 Rated Load up to [kg] |
5.000 | 1.600 | 3.000 | 4.000 | 5.000 | 9.800 | 3.000 | 1.800 | 10.50 | 1.500 | 2.000 | 1.150 | 1.150 |
| Suspension 2:1 Rated Speed [m/s] |
1,0 ... 5,0 | 0,63 ... 2,5 | 1,0 ... 5,0 | 1,0 ... 5,0 | 1,0 ... 5,0 | 1,0 ... 6,0 | 0,63 ... 3,5 | 0,5 ... 2,0 | 0,63 ... 1,6 | 0,5 ... 2,0 | 0,5 ... 1,5 | 0,5 ... 1,6 | 0,5 ... 1,0 |
| Suspension 1:1 Rated Load up to [kg] |
2.500 | 800 | 1.500 | 2.000 | 2.500 | 5.000 | 1.500 | 850 | 500 | 675 | 1.000 | 550 | 550 |
| Suspension 1:1 Rated Speed [m/s] |
2,0 ... 10,0 | 1,0 ... 5,0 | 1,0 ... 10,0 | 2,0 ... 10,0 | 2,0 ... 10,0 | 2,0 ... 12,0 | 1,0 ... 5,0 | 0,5 ... 3,0 | 1,0 ... 2,0 | 0,5 ... 2,5 | 1,0 ... 2,0 | 1,0 ... 2,0 | 1,0 ... 2,0 |
| Shaft load up to [kN] | 300 | 55 | 140 | 200 | 300 | 520 | 100 | 45 | 24 | 26 | 24 ... 35 | 24 ... 35 | 35 |
| Traction sheave diameter [mm] | 650, 750 | 530, 610, 650, 686, 750 | 530, 610, 650, 686, 750 | 650, 750 | 650, 750 | 650, 800 | 8340, 400 | 320, 400, 480, 520, 650 | 160, 210, 240, 320, 400 | 240, 270, 320, 400, 480 | 100 | 120, 160 | 160, 180 |
| EU Type examination certification | EU-BD 1030 | EU-BD 715 | Inspecta 15656 | EU-BD 908 | EU-BD 1030 | EU-BD 1030 | EU-BD 1077 | EU-BD 1052 | EU-BD 1051 | EU-BD 1034 | EU-BD 1051 | EU-BD 1051 | EU-BD 1056 |
| EU Type examination certification | EU-BD 1030 | EU-BD 715 | Inspecta 15656 | EU-BD 908 | EU-BD 1030 | EU-BD 1030 | EU-BD 1014/1 | EU-BD 1053 | EU-BD 1093 | EU-BD 1051 | EU-BD 1056 | EU-BD 1056 | EU-BD 1055 |
| EU Type examination certification | EU-BD 1030 | EU-BD 715 | Inspecta 15656 | EU-BD 908 | EU-BD 1030 | EU-BD 1030 | EU-BD 1014/1 | EU-BD 1054 | EU-BD 1093 | EU-BD 1056 | EU-BD 1055 | EU-BD 1055 | EU-BD 1055 |
| UL/CSA approved | yes | yes | yes | yes | yes | no | no | no | no | no | no | no | no |
| Motor | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, | synchronous, |
| Motor | 22 poles | 22 poles | 22 poles | 22 poles | 22 poles | 20 poles | 20 poles | 20 poles | 14 poles | 16 poles | 14/16 poles | 14/16 poles | 16 poles |
| Dimension (approx.) [mm] | 1220 x 1110 x 1380 | 836 x 720 x 404 | 893 x 942 x 1054 | 1000 x 1092 x 1275 | 1220 x 1110 x 1380 | 1350 x 1355 x 2392 | 475 x 586 x 987 | 360 x 447 x 804 | 210 x 313 x 518 | 313 x 320 x 660 | 262 x 331 x 931 | 262 x 331 x 722 | 262 x 331 x 722 |
| Weight (approx.) [kg] | 2.780 ... 3.000 | 298 ... 420 | 1.120 ... 1.300 | 1.775 ... 1.925 | 2610 ... 2825 | 7.920 ... 8.351 | 570 ... 825 | 241 ... 315 | 110 ... 130 | 121 ... 167 | 100 ... 188 | 95 ... 171 | 150 ... 183 |
