Hydra
Landing Door - Features
- Technical sheet
- Multimedia
- Fields of application
- Contact
Features
Hydra is the Wittur multifunctional door designed for maximum application flexibility.
The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.
Advantages:
The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.
Advantages:
- Flexible and reliable door
- Wide variety of configurations and executions
- Complete range of finishes
- Possibility to satisfy every single application with an high degree of personalization
- The landing door Hydra is combined with Hydra Plus operator, Pegasus Plus operator (medium-high traffic), Eco Piuma and Hydra 3000 Plus operator (for medium-low traffic)
Executions
Standard landing door: complete automatic landing door, including hanger complying with EN 81, panels and frames in prime finish RAL 7032, standard aluminium sill, toe-guard 300 mm, fixing brackets.
Landing door with special frames (angular frame and tubular frame).
Fire resistant landing door (according to EN 81-58 norms):
Landing door with special frames (angular frame and tubular frame).
Fire resistant landing door (according to EN 81-58 norms):
Glass panels door
Glass-framed panels door
Fire-resistant landing door (further norms):
Glass-framed panels door
Fire-resistant landing door (further norms):
- Landing door according to DIN 18091norms
- Fire-resistant landing door
- Fire-resistant glass-framed panel door
- Fire-cutting landing door
Special execution
- Explosionproof
- Waterproof IP54
Landing door according to EN 81-72 norms (firefighters)
Landing door according to EN 81-71:2005 norms (vandal-resistant certification)
Panels and frames finishings
- Prime finish painted sheet (RAL 7032)
- Stainless Steel
- Anodized aluminium
- Coloured aluminium
- Prepainted aluminium
- Extruded aluminium
- Plasticized sheet
- Plastic laminate
- Hammered paint
- RAL smooth painting
Video
Wittur Hydra Elevator door assembly procedure
Hydra The versatile door
Hydra is the Wittur multifunctional door designed for maximum application flexibility.The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.
Configurations
| Code | Drive position | Series | Door Type | Illustration | Clear opening min. (mm) | Clear opening max. (mm) | Clear height min. (mm) | Clear height max. (mm) |
|---|---|---|---|---|---|---|---|---|
| 01/C |  |
3201 | 01/C |  |
500 | 1800 | 1900 | 3500 |
| 11/L | |
3201 | 11/L |  |
500 | 1800 | 1900 | 3500 |
| 11/R | |
3201 | 11/R |  |
500 | 1800 | 1900 | 3500 |
| 31/L | |
3201 | 31/L |  |
600 | 2100 | 1900 | 3500 |
| 31/R | |
3201 | 31/R |  |
600 | 2100 | 1900 | 3500 |
| 41/C | |
3201 | 41/C |  |
1200 | 3200 | 1900 | 3500 |
| 43/R | |
3201 | 43/R |  |
600 | 1150 | 1900 | 3500 |
| 61/C | |
3201 | 61/C |  |
1500 | 3200 | 1900 | 3500 |
| 65/R | |
3201 | 65/R |  |
900 | 1700 | 1900 | 3500 |
| 71/L | |
3201 | 71/L |  |
500 | 1400 | 1900 | 3500 |
| 71/R | |
3201 | 71/R |  |
500 | 1400 | 1900 | 3500 |
Downloads
Please note that this is just a selection of all available documents. You can access all documents from the SERVICES > DOCUMENTS SEARCH AND DOWNLOAD page and all certificates from the SERVICES > CERTIFICATES SEARCH page.
Commercial documents 19 files
Drawings 9202 files

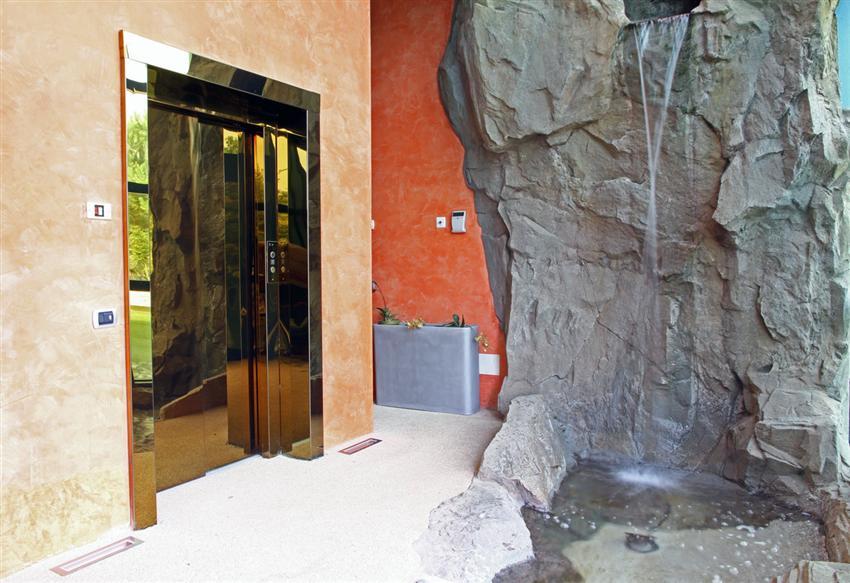

Image gallery
