Modulair en flexibel

W Line

W Line is het nieuwe modulaire en flexibele totaalsysteem.

Het is een ideale oplossing voor woon-, handels- en kantoorgebouwen, gebaseerd op een innovatief, gedeeld design.

1
3
ResidentialHotelShoppingHospitalHigh riseTransportHomelift
W Line is a new modular and flexible complete system. It's an ideal solution for residential, commercial and public buildings based on innovative sectional design.

Advantages:

​ 320-2500 kg

 1,0-3,0 m/s

 150 m

 Central guided

 Wittur SF-MF-LF series

 Single or double entrance

 Side or center opening

 Complete system or mechanical kit only

 EN 81-20/EN 81-50/EN 81-21
 EN 81-28/EN 81-70/EN 81-71

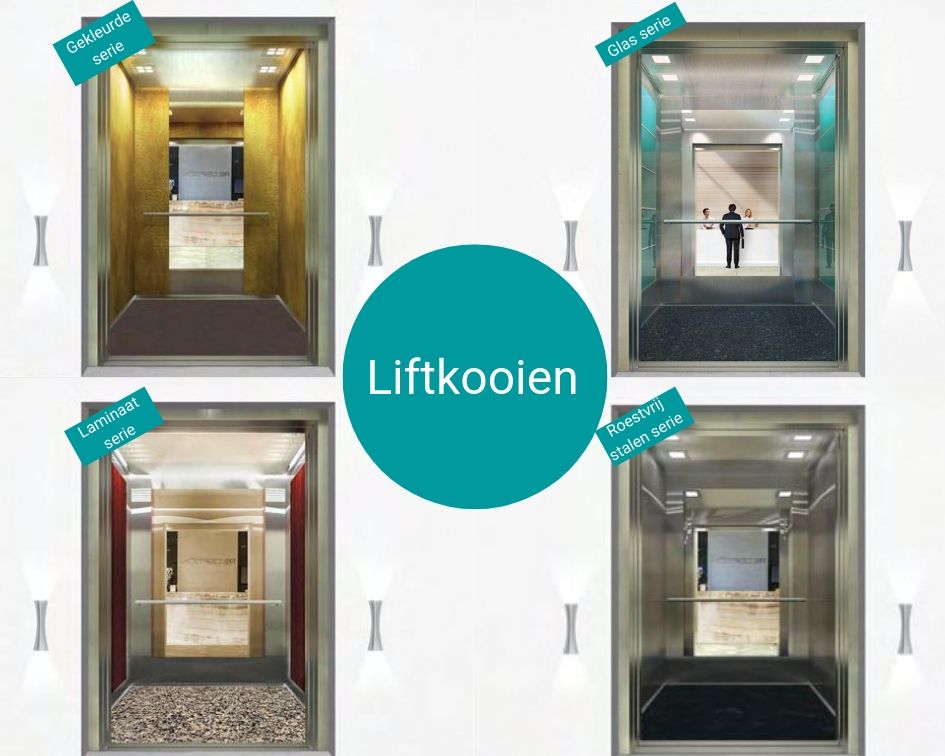

CARS

  • Stainless Steel Series
  • Color Series
  • Laminates Series
  • Glass Series
SPECIAL CARS

Wittur supplies different kind of special cars, such as panoramic cars which can be adpted to any situation and it can be also customizes with a lot of finishes.


PANORAMIC CARS: Wittur provides completely transparent panoramic cars, easy to adapt to both technological environments and refined and prestigious environments.

DOORS
  * Please refer to Wittur Range of Doors Catalogue for further details.
** Available only in selected markets (Turkey, China and India)

DRIVES

CONTROLLER


COP-LOP


Technical sheet

    320 < Q < 1000
Rated Load kg 320 400 450 630 800 1000
Suspension   2:1
Rated Speed m/s 1 1 1 1,6 1 1,6 2 1 1,6 2 2,5 1 1,6 2 2,5 3
Max. Travel Height m 30 30 30 60 30 60 90 30 60 90 120 30 60 90 120 150
Max. Stop Number   10 10 10 20 10 20 30 10 20 30 40 10 20 30 40 50
Entrance Type   0° / 180°
Car Internal Dimension
(CIW x CID)		 mm 900 x 1000 1100 x
1000		 1000 x
1250 		 1100 x
1400		 1350 x 1
400		 1150 x
1700		 1100 x
2100
Min. Shaft Width x Shaft Depth
(Sw x Sd)		 mm 1415 x
1365		 1615 x
1000		 1515 x
1615		 1520 x
1615		 1615 x
1765		 1620 x
1765		 1635 x
1765		 1870 x
1765		 1870 x
1765		 1885 x
1765		 1850 x
2115		 1620 x
2465		 1635 x
2465		 1785 x
2465		 1800 x
2465		 2080 x
2165
Standard Pit (d1) mm 1000 1000 1000 1000 1000 1100 1200 1000 1100 1200 1550 1000 1100 1200 1550 2150
Reduced Pit (d1) mm 400 400 400 900 400 900 - 400 900 - - 400 900 - - -
Standard Headroom
(700 mm balustrade)		 mm 3550 3550 3550 3710 3550 3710 3850 3550 3710 3850 - 3550 3710 - - -
Standard Headroom
(1100 mm balustrade)		 mm 3820 3820 3820 3980 3820 3980 4130 3820 3980 4130 5200 3820 3980 4130 5200 5700
Standard Headroom
(700 mm balustrade
and reduced pit)
 mm 3640 3640 3640 3800 3640 3800 - 3640 3800 - - 3640 3800 - - -
Standard Headroom
(1100 balustrade
and reduced pit)		 mm 3820 3820 3820 3980 3820 3980 - 3820 3980 - - 3820 3980 - - -
Reduced Headroom mm 3400 3400 3400 3560 3400 3560 - 3400 / 3550 3560 / 3750 - - 3400 / 3550 3560 / 3750 - - -
Reduced Headroom
(when reduced pit)		 mm 3600 3600 3600 3750 3600 3750 - 3600 / 3650 3750 / 3800 - - 3600 / 3650 3750 / 3800 - - -
Clear Opening (CO) mm 600 ... 1600
Clear Height (CH) mm 2000 ... 2600
Door Type   Hydra / Augusta Evo / Core
Car Internal Height (CIH) mm 2000 ... 3000

    1275 < Q < 2500
Rated Load (Q) kg 1275 1600 2000 2500
Suspension   2:1
Rated Speed   1 1,6 2 2,5 3 1 1,6 2 2,5 3 1 1,6 2 1 1,6
Max. Travel Height m/s 30 60 90 120 150 30 60 90 120 150 30 60 90 30 60
Max. Stop Number m 10 20 30 40 50 10 20 30 40 50 10 20 30 10 20
Entrance Type
Car Internal Dimensions
(CIW x CID)		 mm 1200 x 2300 1300 x
2200		 1400 x 2400 1500 x 2700 1800 x 2700
Min. Shaft Width x Shaft Depth
(Sw x Sd)		   1900 x 2665 2080 x
2565		 2100 x 2765 2180 x
2765		 2200 x 3065 2500 x 3065
Standard Pit mm 1200 1300 1400 1550 2150 1200 1300 1400 1550 2150 1200 1300 1400 1200 1300
Standard Headroom
(When 1100 mm balustrade)		 mm 3780 / 4300 4030 / 4460 4230 / 4610 5200 5700 3940 / 4370 4100 / 4530 4680 5200 5700 4370 4530 4680 4370 4530
Reduced Headroom mm 3600 3750 - - - 3600 3750 - - - - - - - -
Clear Opening (CO) mm 600 ... 1600
Clear Height (CH) mm 2000 ... 2600
Door Type   Hydra / Augusta Evo / Core
Car Internal Height (CIH) mm 2000 ... 3000
