W Line EQ

W Line EQ tamamlanmış ve akıllı bir çözümdür. Akıllı binalar için muhteşem bir çözümdür

1
3
ResidentialShoppingHomelift
W Line EQ is Well-Rounded and Smart Solution. It's a great solution for smart buildings and it's also ideal for complete replacement or new installations in a compact shaft.

Advantages:

 180-630 kg

 1,0 m/s

 30 m

 Cantilevered

 E27L

 90°, 180°, 270° entrance and 3 entrances*

 Side or center opening

 Complete system or mechanical kit only

 EN 81-20/EN 81-50/EN 81-21
 EN 81-28/EN 81-70
*As special solution


CARS

  • Stainless Steel Series
  • Color Series
  • Laminates Series
  • Glass Series
DOORS
  * Please refer to Wittur Range of Doors Catalogue for further details.
** Available only in selected markets (Turkey, China and India)

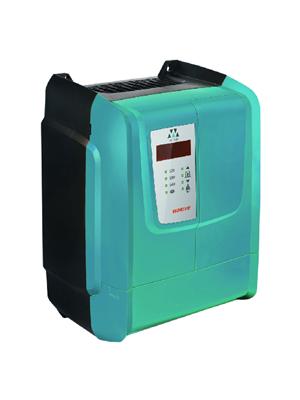

DRIVES

Smooth, fast and comfortable level
  • E27L

According to P weight, system's suspension should be considered.

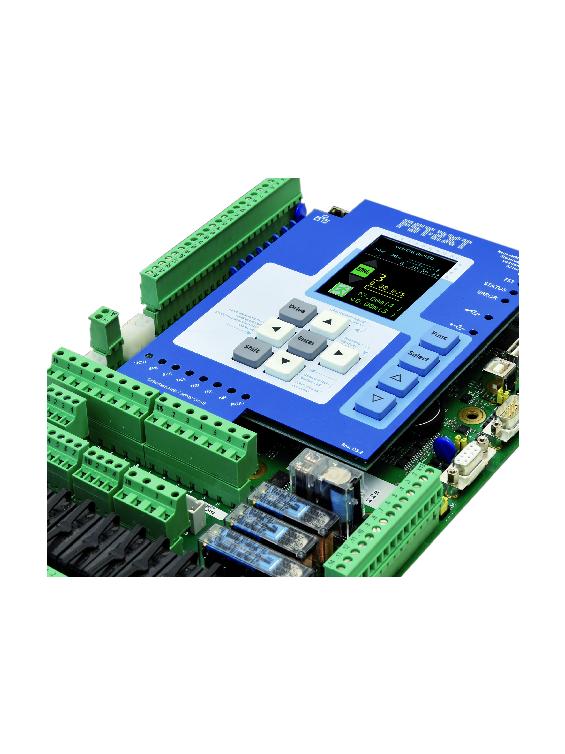

CONTROLLER


COP-LOP


Technical sheet

    EQ Range
Rated Load kg 180 225 320 375 375 450 525 630
Suspension   1:1 2:1
Rated Speed m/s 1
Max. Travel Height m 30
Max. Stop Number   10
Entrance Type   90° / 180° / 270°
Car Internal Dimensions
(CIW x CID) - Car Sling on side		 mm 700 x 800 800 x 800 900 x 1000 1000 x 1100 1000 x 1100 1000 x 1200 1100 x 1200 1100 x 1400
Min. Shaft Width x
Shaft Depth
(Sw x Sd) - Car Sling on side
Standard Headroom		 mm 1165 x 1140 1175 x 1140 1270 x 1335 1370 x 1435 1370 x 1435 1370 x 1535 1470 x 1535 1470 x 1735
Min. Shaft Width x Shaft Depth
(Sw x Sd) - Car Sling on side
Reduced Headroom		 mm 1165 x 1140 1260 x 1135 1360 x 1335 1460 x 1435 1495 x 1435 1495 x 1535 1595 x 1535 1595 x 1735
Car Internal Dimensions
(CIW x CID) - Car Sling on rear
 mm 700 x
800		 950 x
800		 1050 x
800		 1050 x 1050 1100 x 1000 1200 x 1000 1100 x 1200 1200 x 1300
Min. Shaft Width x
Shaft Depth
(Sw x Sd) - Car Sling on rear
Standard Headroom		 mm 1165 x 1390 1165 x 1390 1240 x 1385 1240 x 1635 1245 x 1585 1320 x 1585 1240 x 1785 1380 x 1885
in. Shaft Width x
Shaft Depth
(Sw x Sd) - Car Sling on rear
Reduced Headroom
 mm 1165 x 1480 1165 x 1480 1240 x 1475 1240 x 1725 124 x
1710		 1320 x 1710 1240 x 1910 1380 x 2010
Standard Pit min mm 1020
Standard Headroom mm 3385 (CIH = 2100)
Reduced Pit mm 340 370
Reduced Headroom mm 2600 / 2900 (CIH = 2000) 2600 (CIH = 2000)
Door Width mm 600 ... 1000
Door height mm 2000 ... 2100
Door Type mm Hydra / Augusta Evo / Core
Car Internal Height (CIH) mm 2000 ... 2300
